NTE973D

Features:

 Excellent Carrier Suppression:
                      65dB typ @ 0.5MHz
                      50db typ @ 10MHz
Adjustable Gain and Signal Handling
Balanced Inputs and Outputs

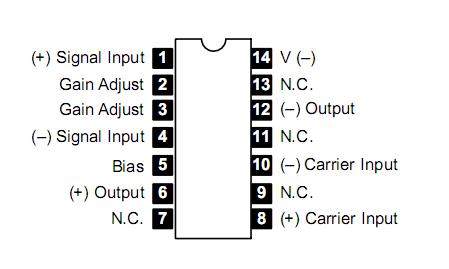

Pinout




Specifications

Applied Voltage, ∆V
           (V₆V₇, V₈V₁, V₉V₇, V₉V₈, V₇V₄, V₇V₁, V₈V₄, V₆V₈, V₂V₅, V₃V₅)  . .. .  . . . . . 30V
Differential Input Signal, V₇V₈ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . ..  . . . . . . . +5.0V
Differential Input Signal, V₄V₁ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . ±(5 + I₅R_e) V
Maximum Bias Current, I₅  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .. . ... . . . . . . . . 10mA
Operating Temperature Range, T_A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .. . . .. ... . . . 0° to +70°C
Storage Temperature Range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  65° to +150°C
Thermal Resistance, JunctiontoAmbient, R_thJA . . . . . . . . . . . . . . . . . . . . .  . . .. . . ... . . . . . . 100°C/W


Description

The NTE973D is a balanced modulatior/demodulator in a 14Lead DIP type package designed for use where the output voltage is a product of an input voltage (signal) and a switching function (carrier). Typical applications of NTE973D include suppressed carrier and amplitude modulation, synchronous detection, FM detection, phase detection, and chopper applications.
