NTE947D

Features: ` No Frequency Compensation Required` ShortCircuit Protection` Wide CommonMode and Differential Voltage Ranges` LowPower Consumption` No LatchUp` Balanced Offset Null` Choice of Package Types: NTE947: 10Lead Metal Can NTE947D: 14Lead DIPPinoutSpecificationsSupply Voltage, VCC . . . . . ....

product image

NTE947D Picture
See larger image
SeekIC No. : 004436598 Detail

NTE947D: Features: ` No Frequency Compensation Required` ShortCircuit Protection` Wide CommonMode and Differential Voltage Ranges` LowPower Consumption` No LatchUp` Balanced Offset Null` Choice of Package Ty...

NTE947D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE947D
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` No Frequency Compensation Required
` ShortCircuit Protection
` Wide CommonMode and Differential Voltage Ranges
` LowPower Consumption
` No LatchUp
` Balanced Offset Null
` Choice of Package Types: NTE947: 10Lead Metal Can NTE947D: 14Lead DIP


Pinout

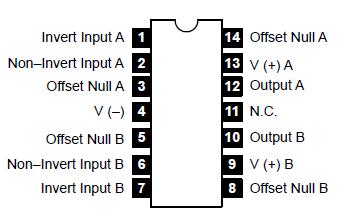

Connection Diagram


Specifications

Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±18V
Power Dissipation (Note 1), PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 800mW
Differential Input Voltage, VID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±30V
CommonMode Input Swing Voltage (Note 2), VICR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±15V
Output ShortCircuit Duration, tOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Indefinite
Operating Ambient Temperature Range, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0° to +70
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  65° to +150
Lead Temperature (During Soldering, 10sec), TL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +300
Note 1. The maximum junction temperature of the NTE947 and NTE947D is 100. For operating at elevated temperatures, the NTE947 must be derated based on a thermal resistance of +150/W, junctiontoambient, or +45/W, junctiontocase. The thermal resistance of the NTE947D is +100 junctiontoambient.
Note 2. For supply voltages less than ±15V, the absolute maximum input voltage is equal to the supply voltage.


Description

The NTE947 and NTE947D are general purpose dual operational amplifiers in a 10Lead Metal Can and 14Lead DIP type packages respectively. These two amplifiers share a common bias network and power supply leads. Otherwise, NTE947D's  operation is completely independent.
