Product Details

Description



Features:

· ±1V to ±18V power supply operation
· 3nA input offset current
· Standby power consumption as low as 500mW
· No frequency compensation required
· Programmable electrical characteristics
· Offset voltage nulling capability
· Can be powered by two flashlight batteries
· Short circuit protection

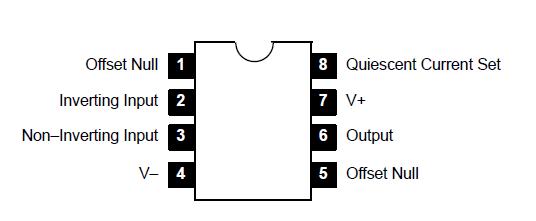

Pinout

Connection Diagram


Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±18V
Power Dissipation (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500mW
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±30V
Input Voltage (Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±15V
ISET Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150A
Output Short Circuit Duration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Indefinite
Operating Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0° TA +70
Storage Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65° to +150
Lead Temperature (Soldering, 10sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +300
Note 1. The maximum junction temperature of the NTE944 is 100. For operating at elevated temperatures, the NTE944 must be derated based on a thermal resistance of 150/W junction to ambient, or 45/W junction to case. The thermal resistance of the NTE944M is +125/W.
Note 2. For supply voltages less than ±15V, the absolute maximum input voltage is equal to the supply voltage.


Description

The NTE944 (8Lead Metal Can) and NTE944M (8Lead MiniDIP) are extremely versatile programmable monolithic operational amplifiers. A single external master bias current setting resistor programs the input bias current, input offset current, quiescent power consumption, slew rate, input noise, and the gainbandwidth product. These NTE944M are truly general purpose operational amplifiers.
