Product Details

Description



Features:

` Available in Two Packages Styles: 8Lead Metal Can (NTE938) 8Lead DIP (NTE938M)
` Operation From a Wide Range of Power Supply Voltages
` Low Input Bias and Offset Currents
` Low Input Offset Voltage and Guaranteed Offset Voltage Drift Performance
` High Input Impedance

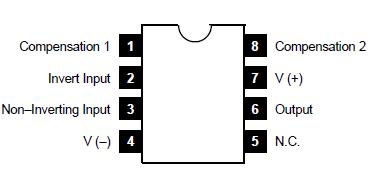

Pinout

Connection Diagram


Specifications

Power Supply Voltage, VCC, VEE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±18V
Input Voltage (Note 1), VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±15V
Input Differential Current (Note 2), IID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±10mA
Output ShortCircuit Duration, tS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Indifinite
Operating Junction Temperature, TJ
NTE938 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+175
NTE938M . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+150
Operating Ambient Temperature Range, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0° to +70
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65° to +150
Note 1. For supply voltages less than ±15V, the maximum input voltage is equal to the supply voltage.
Note 2. The inputs are shunted with backtoback diodes for overvoltage protection. Therefore, excessive current will flow if a differential input voltage in excess of 1.0V is applied between the inputs unless some limiting resistance is used.


Description

The NTE938 and NTE938M operational amplifiers provide high input impedance, low input offsets and temperature drifts, and low noise. This series of amplifiers is particularly useful for applications where highaccuracy and lowdrift performance are essential. In addition, highspeed performance of NTE938M may be improved by employing feedforward compensation techniques to maximize slew rate without compromising other performance criteria.

The NTE938 and NTE938M offer extremely low input offset voltage and drift specifications allowing usage in even the most critical applications without external offset nulling.
