NTE9370

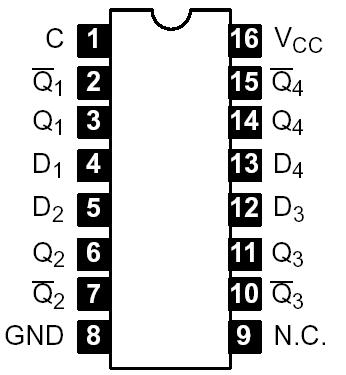

Pinout




Specifications

Supply Voltage: Continuous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16.5V
Pulsed (< 0.1sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18V
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5V to 16.5V
Voltage Applied to Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5V to +16.5V
Continuous Sink Current (T_A = +25°C):
Continuous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15mA
Surge (< 1sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20mA
Output Short Circuit Duration to GND . . . . . . . . . . . . . . . . . . . . . . . . . . .  .Continuous
Operating Temperature Range, T_opr . . . . . . . . . . . . . . . . . . . . . . . ..30° to +85°C
Storage Temperature Range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . 55° to +100°C
Lead Temperature (During Soldering, 1/16" from case, 10sec max), T_L . . . .+300°C


Description

Four Dtype flipflops utilizing a common clock line make up the NTE9370. Each flipflop has complimentary passive pull up outputs with a single D input. This circuit is ideal as a quad latch for temporary storage of 4bit binary numbers.

Data of NTE9370  is transferred from D inputs to outputs when the clock line is low. With the clock line high, output data is held and D inputs are ignored.
