Features:

· Short Circuit Protected Outputs
· True Differential Input Stage
· Single Supply Operation: 3.0 to 32 Volts
· Low Input Bias Currents
· Internally compensated
· Common Mode Range Extends to Negative Supply
· Single and Split Supply Operation


Pinout

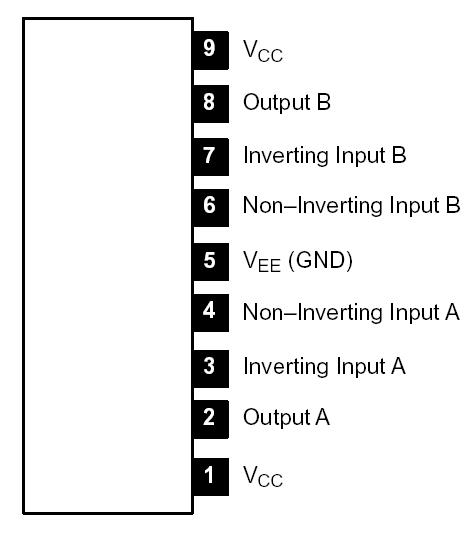

Connection Diagram


Specifications

Power Supply Voltages
Single Supply, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32V
Split Supplies, VCC VEE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±16V
Input Differential Voltage Range (Note 1), VIDR . . . . . . . . . . . . ±32V
Input Common Mode Voltage Range (Note 2), VICR . . . .0.3 to 32V
Input Forward Current (VI 0.3V, Note 3), IIF . . . . . . . . . . . . . 50mA
Output Short Circuit Duration, tS . . . . . . . . . . . . . . . . . . ..Continuous
Junction Temperature, TJ . . . . . . . . . . . . . . . . . . . 55° to +125°C
Operating Ambient Temperature Range, TA . . . . . . . . .0° to +70°C
Note 1. Split Power Supplies
Note 2. For supply voltages less than 32V, the absolute maximum input voltage is equal to the supply voltage.
Note 3. This input current will only exist when the voltage is negative at any of the input leads. Normal output states will reestablish when the input voltage returns to a voltage greater than 0.3V.


Description

Utilizing the circuit designs perfected for recently introduced Quad Operational Amplifiers, the NTE928S dual operational amplifier features low power drain, a common mode input voltage range extending to ground/VEE, and Single Supply or Split Supply Operation.

This amplifier NTE928S has several distinct advantages over standard operational amplifier types in single supply applications. NTE928S can operate at supply voltages as low as 3.0 Volts or as high as 32 Volts with quiescent currents about onefifth of those associated with the NTE941 (on a per amplifier basis). The common mode input range of NTE928S includes the negative supply, thereby eliminating the necessity for external biasing power supply voltage.
