Features:

· 120MHz Bandwidth
· 250kΩ Input Resistance
· No Frequency Compensation Required
· Selectable Gains of 10, 100 and 400
· High Common Mode Rejection Ratio at High Frequencies


Application

· Magnetic Tape Systems
· Disk File Memories
· Thin and Thick Film Memories
· Woven and Plated Wire Memories
· Wide Band Video Amplifiers


Pinout

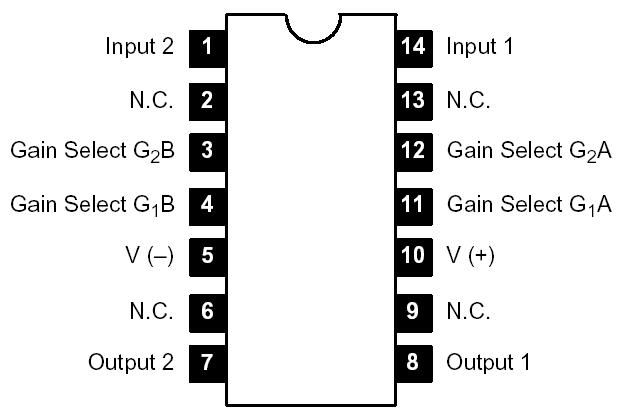

Connection Diagram


Specifications

Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . ±5V
Common Mode Input Voltage . . . . . . . . . . . . . . . . . . . ±6V
Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . ±8V
Output Current, IO . . . . . . . . . . . . . . . . . . . . . . . . . . 10mA
Power Dissipation (Note 1), PD . . . . . . . . . . . . . . .  500mW
Junction Temperature, TJ . . . . . . . . . . . . . . . . . . . +100°C
Storage Temperature Range, Tstg . . . . .65° to +150°C
Operating Temperature Range, Topr . . . . . . 0° to +70°C
Lead Temperature (Soldering, 10sec), TL . . . . . . .+260°C
Note 1. For operation at elevated temperatures, derate device based on a thermal resistance of +150°C/W junction to ambient or +45°C/W junction to case.






Description

The NTE927D and NTE927SM are twostage, differential input, differential output, wideband video amplifiers. The use of internal seriesshunt feedback gives wide band bandwidth with low phase distortion and high gain stability. Emitterfollower outputs of NTE927D provide a high current drive, low impedance capability. Its 120MHz bandwidth and selectable gains of 10, 100, and 400, without need for frequency compensation, make NTE927D a very useful circuit for memory element drivers, pulse amplifiers, and wide band gain stages.
