NTE927

Features: · 120MHz Bandwidth· 250kΩ Input Resistance· No Frequency Compensation Required· Selectable Gains of 10, 100 and 400· High Common Mode Rejection Ratio at High FrequenciesApplication· Magnetic Tape Systems· Disk File Memories· Thin and Thick Film Memories· Woven and Plated Wire Memor...

product image

NTE927 Picture
See larger image
SeekIC No. : 004436567 Detail

NTE927: Features: · 120MHz Bandwidth· 250kΩ Input Resistance· No Frequency Compensation Required· Selectable Gains of 10, 100 and 400· High Common Mode Rejection Ratio at High FrequenciesApplication· ...

NTE927 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE927
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 120MHz Bandwidth
· 250kΩ Input Resistance
· No Frequency Compensation Required
· Selectable Gains of 10, 100 and 400
· High Common Mode Rejection Ratio at High Frequencies


Application

· Magnetic Tape Systems
· Disk File Memories
· Thin and Thick Film Memories
· Woven and Plated Wire Memories
· Wide Band Video Amplifiers

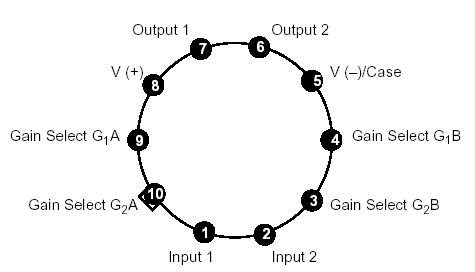

Pinout

Connection Diagram


Specifications

Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±5V
Common Mode Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . .±6V
Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±8V
Output Current, IO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10mA
Power Dissipation (Note 1), PD . . . . . . . . . . . . . . . . . . . . . . 500mW
Junction Temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . +100°C
Storage Temperature Range, Tstg . . . . . . . . . . . .65° to +150°C
Operating Temperature Range, Topr . . . . . . . . . . . . . 0° to +70°C
Lead Temperature (Soldering, 10sec), TL . . . . . . . . . . . . . .+260°C
Note 1. For operation at elevated temperatures, derate device based on a thermal resistance of +150°C/W junction to ambient or +45°C/W junction to case.


Description

The NTE927 is a twostage, differential input, differential output, wideband video amplifier. The use of internal seriesshunt feedback gives wide band bandwidth with low phase distortion and high gain stability. Emitterfollower outputs provide a high current drive, low impedance capability. NTE927's 120MHz bandwidth and selectable gains of 10, 100, and 400, without need for frequency compensation, make it a very useful circuit for memory element drivers, pulse amplifiers, and wide band gain stages.
