NTE926

Features: ` 100mA Output Current per Section` Edgetriggered (No Coupling Capacitor)` Output Independent of Trigger Conditions` Wide Supply Voltage Range 4.5V to 18V` Timer Intervals from Microseconds to Hours` Time Period Equals RCApplication` Sequential Timing` Time Delay Generation` Precision Ti...

product image

NTE926 Picture
See larger image
SeekIC No. : 004436566 Detail

NTE926: Features: ` 100mA Output Current per Section` Edgetriggered (No Coupling Capacitor)` Output Independent of Trigger Conditions` Wide Supply Voltage Range 4.5V to 18V` Timer Intervals from Microsecond...

NTE926 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE926
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 100mA Output Current per Section
` Edgetriggered (No Coupling Capacitor)
` Output Independent of Trigger Conditions
` Wide Supply Voltage Range 4.5V to 18V
` Timer Intervals from Microseconds to Hours
` Time Period Equals RC


Application

` Sequential Timing
` Time Delay Generation
` Precision Timing
` Quad OneShot


Pinout

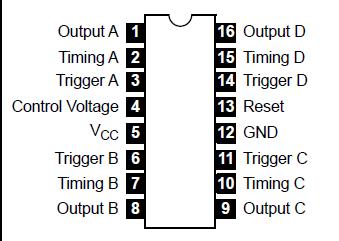

Connection Diagram


Specifications

Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+16V
Maximum Power Dissipation (TA = +25), PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1450mW
Derate Above 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11.6mW/
Operating Ambient Temperature Range, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 to +70
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 to +150
Lead Soldering Temperature (10 Sec Max), TSOLD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +300


Description

The NTE926 quad timer is a monolithic timing device which can be used to produce four independent timing functions. The NTE926 output sinks current. This highly stable, general purpose controller can be used in a monostable mode to produce accurate time delaysfrom microseconds to hours.

In the time delay mode of operation, the time of NTE926 is precisely controlled by one external resistor and one capacitor. A stable operation can be achieved by using two of the four timer sections.

The four timer section in the NTE926 are edgetriggered, therefore, when connected in tandem for sequential timing applications, no coupling capacitors are required. Output current capability of 100mA is provided in both devices.
