NTE922M

Features: ` Operates from single 5V supply` Input current: 150nA max. over temperature` Offset current: 20nA max. over temperature` Differential input voltage range: ±30V` Power consumption: 135mW at ± 15V` Available in 3 Different Case Styles: 8Lead Metal Can: NTE922 8Lead Mini DIP: NTE922M 8Lead...

product image

NTE922M Picture
See larger image
SeekIC No. : 004436560 Detail

NTE922M: Features: ` Operates from single 5V supply` Input current: 150nA max. over temperature` Offset current: 20nA max. over temperature` Differential input voltage range: ±30V` Power consumption: 135mW a...

NTE922M Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE922M
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Operates from single 5V supply
` Input current: 150nA max. over temperature
` Offset current: 20nA max. over temperature
` Differential input voltage range: ±30V
` Power consumption: 135mW at ± 15V
` Available in 3 Different Case Styles: 8Lead Metal Can: NTE922 8Lead Mini DIP: NTE922M 8Lead SOIC (Surface Mount): NTE922SM

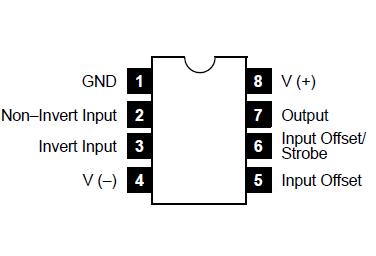

Pinout

Connection Diagram


Specifications

Total Supply Voltage (V84) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  36V
Output to Negative Supply Voltage (V74) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40V
Ground to Negative Supply Voltage (V14) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30V
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  ±30V
Input Voltage (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  ±15V
Power Dissipation (Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500mW
Note 1. This rating applied for ±15V supplies. The positive input voltage limit is 30V above the negative supply. The negative input voltage limit is equal to the negative supply voltage or 30V below the positive supply, whichever is less.
Note 2. The maximum junction temperature is 110. For operating at elevated temperature, the NTE922 must be derated based on a thermal resistance of 150/W, junctiontoambient, or 45/W, junctiontocase. The thermal resistance of the NTE922M and the NTE922SM is 100/W, junctiontoambient.


Description

The NTE922, NTE922M, and NTE922SM are voltage comparators that have input currents nearly a thousand times lower than devices like the NTE910 or NTE910D. They are also designed to operate over a wider range of supply voltages: from standard ±15V op amp supplies down to the single 5V supply used for IC logic. Their output of NTE922M is compatible with RTL, DTL and TTL as well as MOS circuits.

Further, NTE922M can drive lamps or relays, switching voltages up to 50V at currents as high as 50mA.

Both the input and the output of these devices can be isolated from system ground, and the output can drive loads referred to ground, the positive supply or the negative supply. Offset balancing and strobe capability are provided and outputs can be wire OR'ed. Although slower than the NTE910 and NTE910D (200ns response time vs 40ns) the NTE922M are also much less prone to spurious oscillations.
