Features:

` Two Independent Comparators
` Operates from a Single 5V Supply
` Typically 80ns Response Time at ±15V
` Minimum FanOut of 2 Each Side
` Maximum Input Current of 1A Over Temperature
` Inputs and Outputs can be Isolated from System Ground
` High Common Mode Slew Rate


Pinout

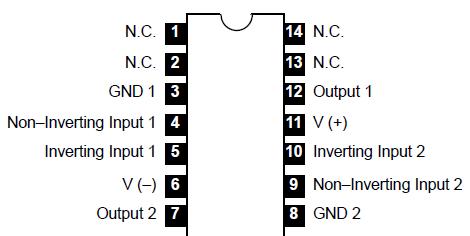

Connection Diagram


Specifications

Total Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36V
Output to Negative Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . 36V
Ground to Negative Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25V
Ground to Positive Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   18V
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±5V
Input Voltage (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  ±15V
Power Dissipation (Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  500mW
Output Short Circuit Duration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10sec
Operating Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0° to +70
Storage Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65° to +150
Lead Temperature (Soldering 10 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +260
Note 1. For supply voltages less than ±15 the absolute maximum input voltage is equal to the supply voltage.
Note 2. The maximum junction temperature is 85. For operating at elevated temperatures, devices must be derated based on a thermal resistance of 100/W, junction to ambient.


Description

The NTE919D is a precision high speed dual comparator fabricated on a single monolithic chip. This devices is designed to operate over a wide range of supply voltages down to a single 5V logic supply and ground. Further, it has higher gain and lower input currents than devices like the NTE910. The uncommitted collector of the output stage of NTE919D makes it compatible with RTL, DTL, and TTL as well as capable of driving lamps and relays at currents up to 25mA.

Although designed primarily for applications requiring operation from digital logic supplies, the NTE919D is fully specified for power supplies up to ±15V.
