NTE907

Features: `Excellent Reverse Recovery Time: 1ns typ.`Matched Monolithic Construction: VF matched within 5mV`Low Diode Capacitance: CD = 0.65pF typical at VR = 2VApplication· Balanced Modulators or Demodulators· Ring Modulators· High Speed Diode Gates· Analog SwitchesPinoutSpecificationsPower Dissi...

product image

NTE907 Picture
See larger image
SeekIC No. : 004436545 Detail

NTE907: Features: `Excellent Reverse Recovery Time: 1ns typ.`Matched Monolithic Construction: VF matched within 5mV`Low Diode Capacitance: CD = 0.65pF typical at VR = 2VApplication· Balanced Modulators or D...

NTE907 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE907
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Excellent Reverse Recovery Time: 1ns typ.
`Matched Monolithic Construction: VF matched within 5mV
`Low Diode Capacitance: CD = 0.65pF typical at VR = 2V


Application

· Balanced Modulators or Demodulators
· Ring Modulators
· High Speed Diode Gates
· Analog Switches

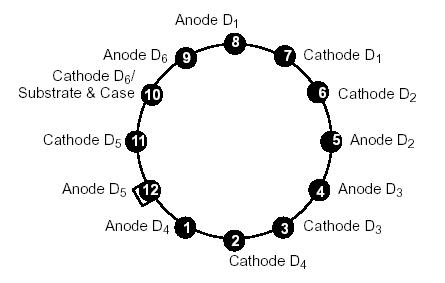

Pinout

Connection Diagram


Specifications

Power Dissipation, PD Any one diode unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100mW
Total for device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .600mW
For TA > 55°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .derate linearly 5.7mW/°C
Operating Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . 55° to +125°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65° to +150°C
Peak Inverse Voltage, PIV
D1 D5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5V
D6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5V
Peak DiodetoSubstrate Voltage, VDI
for D1D5 (Pin1, 4, 5, 8, or 12 to Pin10) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +20V, 1V
DC Forward Current, IF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25mA
Peak Recurrent Forward Current, IF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100mA
Peak Forward Surge Current, IF (Surge) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100mA
Lead Temperature, TL
(During soldering 1/16 ±1/32" (1.59 ± 0.79mm) from case for 10sec Max) . . . .+265°C


Description

The NTE907 consists of six ultrafast, low capacitance diodes on a common monolithic substrate. Five of the diodes are independently accessible, with the sixth sharing a common terminal with the substrate. The NTE907 comes in a 12Lead TO5 type package.
