NTE6886

Features: High Speed: 8.0ns (Typ)ThreeState Logic ConfigurationSingle +5V Power Supply RequirementCompatible with 74LS Logic or 6800 Microprocessor SystemsHigh Impedance PNP Inputs Assure Minimal Loading of the BusPinoutSpecificationsPower Supply Voltage, VCO . . . . . . . . . . . . . . . . . . . ...

product image

NTE6886 Picture
See larger image
SeekIC No. : 004436468 Detail

NTE6886: Features: High Speed: 8.0ns (Typ)ThreeState Logic ConfigurationSingle +5V Power Supply RequirementCompatible with 74LS Logic or 6800 Microprocessor SystemsHigh Impedance PNP Inputs Assure Minimal Lo...

NTE6886 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE6886
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/3/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 High Speed:  8.0ns (Typ)
 ThreeState Logic Configuration
 Single +5V Power Supply Requirement
 Compatible with 74LS Logic or 6800 Microprocessor Systems
 High Impedance PNP Inputs Assure Minimal Loading of the Bus

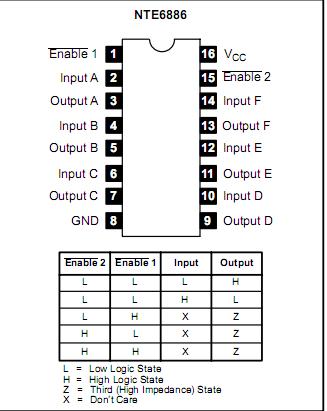

Pinout

Connection Diagram


Specifications

Power Supply Voltage, VCO  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  8.0V.
Input Voltage, VI  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  5.5V.
Operating Ambient Temperature Range, TA   . . . . . . . . . . . . . . . . . .  0 to +75°C
Storage Temperature Range, Tstg  . . . . . . . . . . . . . . . . . . . . . 55° to +150°C
Operating Junction Temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . .  +150°C


Description

The NTE6886 series of devices combines three features usually found desirable in busoriented systems:  1) High impedance logic inputs insure that these devices do not seriously load the bus;  2) Threestate logic configuration allows buffers not being utilized to be effectively removed from the bus;  3) Schottky technology allows highspeed operation.

While the NTE6886 are all buffers, the devices differ in that the NTE6885 (noninverting) and the NTE6886 (inverting) provide a twoinput Enable which controls all six buffers, while the NTE6887 (noninverting) and the NTE6888 (inverting) provide two Enable inputs;  one controlling four buffers and the other controlling the remaining two buffers.

These units NTE6886 are wellsuited for Address buffers on the M6800 or similar microprocessor application.
