Product Details

Description



Features:

 High Speed:  8.0ns (Typ)
 ThreeState Logic Configuration
 Single +5V Power Supply Requirement
 Compatible with 74LS Logic or 6800 Microprocessor Systems
 High Impedance PNP Inputs Assure Minimal Loading of the Bus

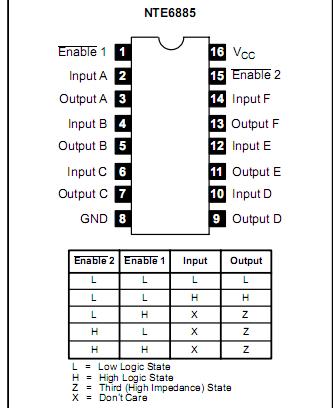

Pinout

Connection Diagram


Specifications

Power Supply Voltage, VCO  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  8.0V.
Input Voltage, VI  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  5.5V.
Operating Ambient Temperature Range, TA   . . . . . . . . . . . . . . . . . .  0 to +75°C
Storage Temperature Range, Tstg  . . . . . . . . . . . . . . . . . . . . . 55° to +150°C
Operating Junction Temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . .  +150°C


Description

The NTE6885 thru NTE6888 series of devices combines three features usually found desirable in busoriented systems:  1) High impedance logic inputs insure that these devices do not seriously load the bus;  2) Threestate logic configuration allows buffers not being utilized to be effectively removed from the bus;  3) Schottky technology allows highspeed operation.

While the NTE6885 to NTE6888 are all buffers, the devices differ in that the NTE6885 (noninverting) and the NTE6886 (inverting) provide a twoinput Enable which controls all six buffers, while the NTE6887 (noninverting) and the NTE6888 (inverting) provide two Enable inputs;  one controlling four buffers and the other controlling the remaining two buffers.

These units NTE6885 are wellsuited for Address buffers on the M6800 or similar microprocessor application.
