NTE6880

All Outputs and Supply Voltages  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5V to +7V
All Input Voltages  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1V to 5.5V
Output Currents  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  ±150mA
Maximum Power Dissipation (TA = +25°C), P_D . . . . . . . . . . . . . . . . . . . . . . . . . . . .  1476mW
     Derate Above +25°C  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11.8mW/°C
Storage Temperature, T_stg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65° to +150°C
Lead Temperature (Soldering, 4 seconds), T_L . . . . . . . . . . . . . . . . . . . . . . . . . . . . .    +260°C

Note 1. "Absolute Maximum Ratings" are those values beyons which the safety of the device cannot be guaranteed.  They are not meant to imply that the devices should be operated at these limits.  The tables of "Electrical Characteristics" provide conditions for actual device operation.

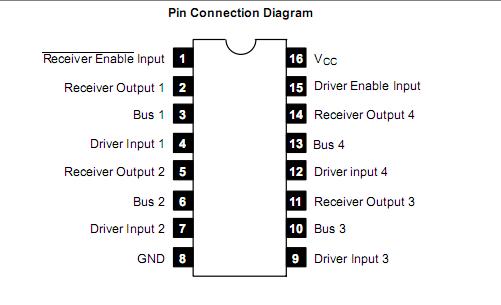

The NTE6880 and NTE6889 consists of 4 pairs of TRISTATE logic elements configured as quad bus drivers/receivers along with separate buffered receiver enable and driver enable lines.
