NTE6810

Supply Voltage, V_CC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 to +7V
Input Voltage, V_in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 to +7V
Operating Temperature Range, T_A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0° to +70°C
Storage Temperature Range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65° to +150°C
Thermal Resistance, Junction to Ambient, R_JA . . . . . . . . . . . . . . . . . . . . .       +120°C/W

Note 1.
This device contains circuitry to protect the inputs against damage due to high static voltages or electric fields; however, it is advised that normal precautions be taken to avoid application of any voltage higher than maximum rated voltages to this high impedance circuit.  Reliability of operation is enhanced if unused inputs are tied to an appropriate logic voltage (e.g., either V_SS or V_CC).

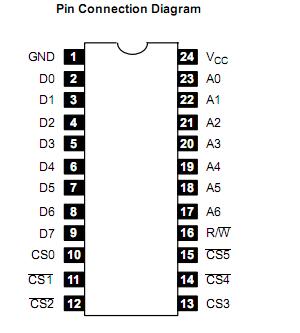

The NTE6810 is a byteorgainzed memory in a 24Lead DIP type package designed for use in busorganized systems.  It is fabricated with Nchannel silicongate technology.  For ease of use, this NTE6810 operates from a single power supply, has compatibility with TTL and DTL, and needs no clocks or refreshing because of static operation.

The memory NTE6810 is compatible with the 6800 Microcomputer Family, providing random storage in byte increments.  Memory expansion is provided through multiple Chip Select inputs.
