NTE6809

Supply Voltage, V_CC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 to +7.0V
Input Voltage, V_in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0.3 to +7.0V
Operating Ambient Temperature Range, T_A . . . . . . . . . . . . . . . . . . . . . .  0° to +70°C
Storage Temperature Range, T_stg . . . . . . . . . . . . . . . . . . . . . . . . . . 55° to +150°C
Thermal Resistance, JunctiontoAmbient, R_thJA . . . . . . . . . . . . . . . . . . . .  100°C/W

Note 1. These devices contain circuitry to protect the inputs against damage due to high static voltages or electric fields; however, it is advised that normal precautions be taken to avoid application of any voltage higher than maximum rated voltages to these high impedance circuits.  Reliability of operation is enhanced if unused inputs are tied to an appropriate logic voltage level (e.g., either VSS or VCC).

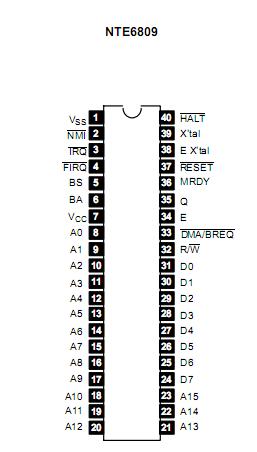

The NTE6809 and NTE6809E are revolutionary high performance 8bit microprocessors in 40Lead DIP type packages which support modern programming techniques such as position independece, reentrancy, and modular programming.

The basic instructions of any computer are greatly enhanced by the presence of powerful addressing modes.  The NTE6809 and NTE6809E have the most complete set of addressing modes available on any 8bit microprocessor today.

These NTE6809 contain hardware and software features which make them ideal processors for higher level language execution or standard controller applications.  External clock inputs are provided on the NTE6809E to allow synchronization with peripherals, systems, or other MPUs.
