Product Details

Description



Features:

` Organized as 256 Bytes of 4Bits
` Static Operation
` Low Standby Power
` ThreeState Output
` Single 5V Power Supply
` Data Retention to 2V
` TTL Compatible
` Maximum Access Time: 450ns

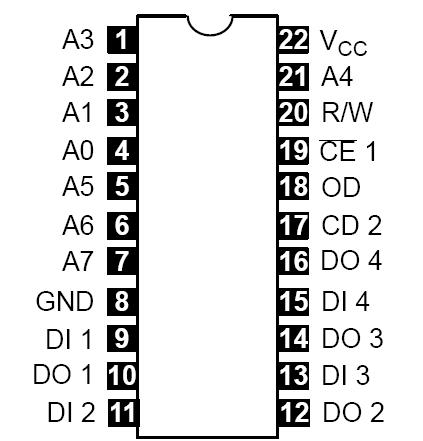

Pinout

Connection Diagram


Specifications

Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 to +7V
Input Voltage, Vin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 to VCC +0.3V
Operating Temperature Range, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  40° to +85°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  65° to +150°C
Note 1. This device contains circuitry to protect the inputs against damage due to high static voltages
or electric fields; however, it is advised that normal precautions be taken to avoid application
of any voltage higher than maximum rated voltages to this high impedance circuit.


Description

The NTE65101 is a CMOS 1024bit device organized in 256 words by 4 bits in a 22Lead DIP type package. This device offers ultra low power and fully static operation with a single 5V supply. Separate data inputs and data outputs permit maximum flexibility in busoriented systems. Data retention at a power supply as low as 2V over temperature readily allows design into applications using battery backup for nonvolatility. The NTE65101 is fully static and does not require clocking in standby mode.
