NTE2764

Features: *Ultraviolet Erasable and Electrically Programmable* Access Time: 250ns Max* Single Location Programming* Programmable with Single Pulse* Low Power Dissipation: 150mA Max (Active Current) 50mA Max (Standby Current)* Input/Output TTL Compatible for Reading and Programming* Single +5V Powe...

product image

NTE2764 Picture
See larger image
SeekIC No. : 004436163 Detail

NTE2764: Features: *Ultraviolet Erasable and Electrically Programmable* Access Time: 250ns Max* Single Location Programming* Programmable with Single Pulse* Low Power Dissipation: 150mA Max (Active Current) ...

NTE2764 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE2764
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Ultraviolet Erasable and Electrically Programmable
* Access Time: 250ns Max
* Single Location Programming
* Programmable with Single Pulse
* Low Power Dissipation: 150mA Max (Active Current)
                                          50mA Max (Standby Current)
* Input/Output TTL Compatible for Reading and Programming
* Single +5V Power Supply
* ThreeState Outputs


Pinout

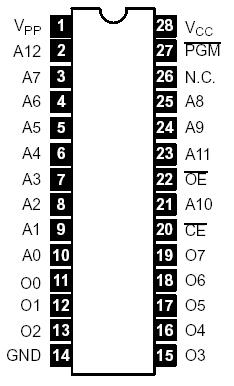

Connection Diagram


Specifications

Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .0.6 to +6V
Supply Voltage, VPP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .0.6 to +22V
Output Voltage, VOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .. . .0.6 to +6V
Input Voltage, VIN  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .. . .0.6 to +6V
Operating Temperature Range, Topr  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... .10 to +80
Storage Temperature Range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .65 to +125
Note 1. Exposing the device to stresses above those listed in Absolute Maximum Ratings could
             cause permanent damage. The device is not meant to be operated under conditions outside
             the limits described in the operational sections of this specification. Exposure to absolute
             maximum rating conditions for extended periods may affect device reliability.


Description

The NTE2764 is a 65,536bit (8192 X 8 bit) Ultraviolet Erasable and Electrically Programmable ReadOnly Memory (EPROM) in a 28Lead DIP type package which operates from a single +5V supply, making it ideal for microprocessor applications. NTE2764 features an output enable control and offers a standby mode with an attendant 67% savings in power consumption.

A distinctive feature of the NTE2764 is a separate output control, output enable (OE) from the chip enable control (CE). The OE control eliminates bus contention in multiplebus microprocessor systems. The NTE2764 features fast, simple onepulse programming controlled by TTLlevel signals. Total programming time for all 65,536 bits is 420 seconds.
