Product Details

Description



Features:

* Fast Access Time: 200ns Max
* 0 to +70 Standard Temperature Range
* Single +5V Power Supply
* Low Standby Current (35mA Max)
* Inputs and Outputs TTL Compatible During Read and Program
* Completely Static

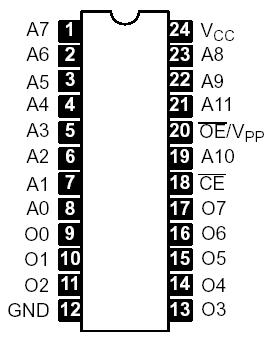

Pinout

Connection Diagram


Specifications

All Input or Output Voltages with respect to GND, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . .+6 to 0.6V
Supply Voltage with respect to GND during Program, Vpp  . . . . . . . . . . . . . . . . . . . . . . .+22 to 0.6V
Ambient Temperature under Bias, TA  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . .10 to +80
Storage Temperature Range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .65 to +125

Note 1. Stresses above those listed under "Absolute Maximum Ratings" may cause permanent
            damage to the device. This is a stress rating only and functional operation of the device at
            these or any other conditions above those indicated in the operational sections of this
            specification is not implied. Exposure to absolute maximum rating conditions for extended
            periods may affect device reliability.


Description

The NTE2732A is a 32,768bits ultraviolet erasable and electrically programmable readonly memory (EPROM) organized as 4,096 words by 8 bits and manufactured using NChannel SiGate MOS processing. With its single +5V power supply and with an access time of 200ns, the NTE2732A is ideal for use with high performance +5V microprocessors such as the NTE3880.

The NTE2732A has an important feature which is the separate output control, Output Enable (OE) from the Chip Enable control (CE). The OE control eliminates bus contention in multiple bus microprocessor systems.

The NTE2732A also features an standby mode which reduces the power dissipation without increasing access time. The active current is 125mA while the maximum standby mode is achieved by applying a TTLhigh signal to the CE input.
