NTE2716

Features: *Single 5V Power Supply* Automatic PowerDown Mode (Standby)* Organized as 2048 Bytes of 8Bits* TTL Compatible During Read and Program* Access Time: 350ns* Output Enable Active Level is User SelectablePinoutSpecificationsAll Input or Output Voltages (with respect to VSS) . . . . . . . . ....

product image

NTE2716 Picture
See larger image
SeekIC No. : 004436157 Detail

NTE2716: Features: *Single 5V Power Supply* Automatic PowerDown Mode (Standby)* Organized as 2048 Bytes of 8Bits* TTL Compatible During Read and Program* Access Time: 350ns* Output Enable Active Level is Use...

NTE2716 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE2716
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Single 5V Power Supply
* Automatic PowerDown Mode (Standby)
* Organized as 2048 Bytes of 8Bits
* TTL Compatible During Read and Program
* Access Time: 350ns
* Output Enable Active Level is User Selectable

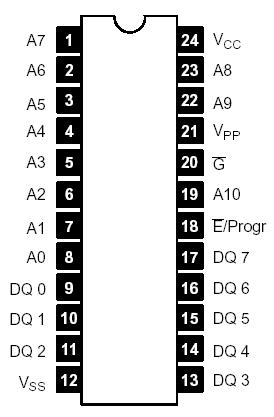

Pinout

Connection Diagram


Specifications

All Input or Output Voltages (with respect to VSS) . . . . . . . . . . . . . . . . . . . . ... . . . . . ..... . . . . .+6 to 0.3V
VPP Supply Voltage (with respect to VSS)  . . . . . . . . . . . . . . . . . . . . . . . . . ... . . . . . . ... . . . . .+28 to 0.3V
Temperature Under Bias (VPP = 5V)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... . . . . . . ... . . .10 to +80
Operating Temperature Range, Topr  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... . . . . . . . ... . . . . .0 to +70
Storage Temperature Range. Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... . . . . . . . . . . . .65 to +125

Note 1. Permanent device may occur if "Absolute Maximum Ratings" are exceeded. Functional operation
             should be restricted to "Recommended Operating Conditions". Exposure to higher
             than recommended voltages for extended periods of time could affect device reliability.
Note 2. This device contains circuitry to protect the inputs against damage due to high static voltages
             or electric fields; however, it is advised that normal precautions be taken to avoid application
             of any voltage higher than maximum rated voltages to this highimpedance circuit.


Description

The NTE2716 is a 16,384bit (2048 x 8bit) Erasable and Electrically Reprogrammable PROM in a 24Lead DIP type package designed for system debug usage and similar applications requiring nonvolatile memory that could be reprogrammed periodically. The transparent lid on the package allows the memory content to be erased with ultraviolet light.

The NTE2716 operates from a single power supply and has a static power down mode.
