NTE2708

Features: *1024 X 8 Organization* All Inputs and Outputs Fully TTL Compatible* Static Operation (No Clocks, No Refresh)* Performance Ranges: Max Access: 450ns Min Cycle: 450ns* 3State Outputs for ORTies* 8Bit Output* PlugCompatible PinOuts Allowing InterchangeabilityPinoutSpecificationsSupply Volt...

product image

NTE2708 Picture
See larger image
SeekIC No. : 004436155 Detail

NTE2708: Features: *1024 X 8 Organization* All Inputs and Outputs Fully TTL Compatible* Static Operation (No Clocks, No Refresh)* Performance Ranges: Max Access: 450ns Min Cycle: 450ns* 3State Outputs for OR...

NTE2708 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE2708
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* 1024 X 8 Organization
* All Inputs and Outputs Fully TTL Compatible
* Static Operation (No Clocks, No Refresh)
* Performance Ranges:
   Max Access: 450ns
   Min Cycle: 450ns
* 3State Outputs for ORTies
* 8Bit Output
* PlugCompatible PinOuts Allowing Interchangeability


Pinout

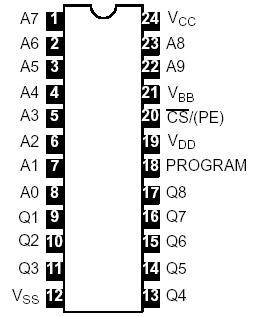

Connection Diagram


Specifications

Supply Voltage, VCC (Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . .0.3 to +15V
Supply Voltage, VDD (Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . .0.3 to +20V
Supply Voltage, VSS (Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .0.3 to +15V
All Input Voltage (except program) (Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 to +20V
Program Input (Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . .0.3 to +35V
Output Voltage (operating, with respect to VSS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 to +7V
Operating freeair temperature range  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0 to 70
Storage temperature Range  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55 to 125
Note 1. Stresses beyond those listed under "Absolute Maximum Ratings" may cause permenant
             damage to the device. This is a stress rating only and functional operation of the device at
             these or any other conditions beyond those indicated in the "Recommended Operating
             Conditions" section of this specification is not implied. Exposure to absolutemaximum
             rated conditions for extended periods may affect device reliability.
Note 2. Under absolute maximum ratings, voltage values are with respect to the mostnegative
            supply voltage, VBB (substrate), unless otherwise noted. Throughout the remainder of this
            data sheet, voltage values are with respect to VSS.


Description

The NTE2708 is an ultraviolet lighterasable, electrically programmable read only memory. It has 8, 192 bits organized as 1024 words of 8bit length. This device is fabricated using Nchannel silicon gate technology for high speed and simple interface with MOS and bipolar circuits. All inputs of NTE2708 (including program data inputs) can be driven by Series 74 TTL circuits without the use of external pullup resistors. Each output can drive one Series 74 or 74LS TTL circuit without external resistors. The data outputs for the NTE2708 are threestate for OR tying multiple devices on a common bus.

This EPROM NTE2708 is designed for highdensity fixed memory applications where fast turn arounds and/or program changes are required. This NTE2708 is designed for operation from 0° to +70°C and is supplied in a 24Lead DIP package for insertion in mountinghole rows on 600mil (15.2 mm) centers.
