NTE2631

Features: 2.0ns Output Skew Typical Operation from Single +5V Supply Output won't Load Line when VCC = 0 Four Line Drivers in One Package for Maximum Package Density Output ShortCircuit Protection Complementary Outputs Meets the Requirements of EIA Standard RS422 High Output Drive Capability for 1...

product image

NTE2631 Picture
See larger image
SeekIC No. : 004436153 Detail

NTE2631: Features: 2.0ns Output Skew Typical Operation from Single +5V Supply Output won't Load Line when VCC = 0 Four Line Drivers in One Package for Maximum Package Density Output ShortCircuit Protection C...

NTE2631 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE2631
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 2.0ns Output Skew Typical
Operation from Single +5V Supply
Output won't Load Line when VCC = 0
Four Line Drivers in One Package for Maximum Package Density
Output ShortCircuit Protection
Complementary Outputs
Meets the Requirements of EIA Standard RS422
High Output Drive Capability for 100 Terminated Transmission Lines
Advanced LowPower Schottky Processing


Pinout

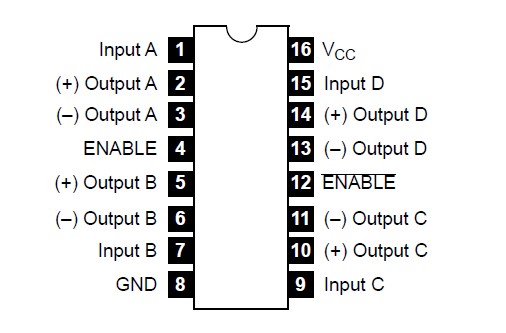

Connection Diagram


Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.0V
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.0V
Output Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5V
Storage Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .     . . . . 65°C to +165°C


Description

The NTE2631 is a quad differential line driver constructed using Advanced LowPower Schottky processing in a 16Lead DIP type package designed for digital data transmission over balanced lines. This NTE2631 meets all the  equirements of EIA standard RS422 and federal standard 1020 and is designed to provide unipolar differential drive to twistedpair or parallelwire transmission lines.

The NTE2631 provides an enable and disable function common to all four drivers and features 3state outputs and logical ORed complemtary enable inputs. The inputs are all LS cxompatible and are all one unit load.
