Product Details

Description



Pinout

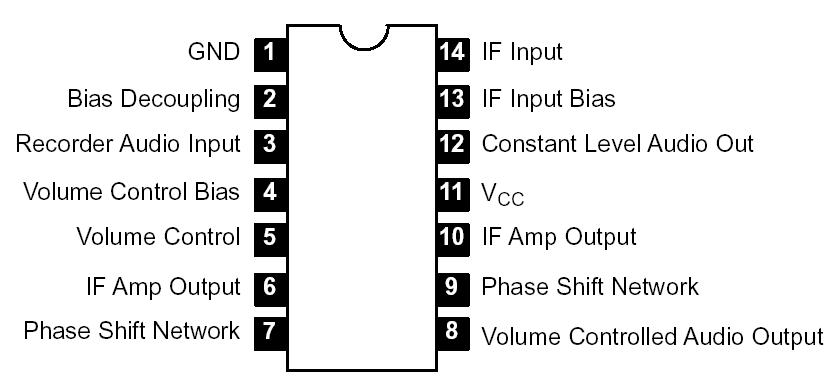

Connection Diagram


Specifications

Maximum Supply voltage (Pin11, Note 1), Vp = V111 . . . . . . . . . .18V
Maximum Adjustment Voltage (Pin5), V51 . . . . . . . . . . . . . . . . . . .6V
Maximum Total Power Dissipation, Ptot . . . . . . . . . . . . . . . . .400mW
Bypass Resistance, R1314 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1kΩ
Operating Ambient Temperature Range, TA . . . . . . . . .15° to +70°C
Storage Temperature Range, Tstg . . . . . . . . . . . . .40° to +125°C


Description

The NTE1580 is an IF amplifier in a 14Lead DIP type package with a symmetrical FM demodulator and an AF amplifier with adjustable output voltage. The AF amplifier is also provided with an output for volume control and an input for VCR operation.

The input and output of the NTE1580 are especially designed for LCcircuits, but the input can also be used with a ceramic filter.
