Product Details

Description



Features:

` Wide Operating Voltage: VCC = 2.5V to 6.0V
` Excellent Low Voltage Characteristics
` High Gain FMIF Amplifiers
` The AM Stage is Composed of a Mixer, a Local Oscillator, an IF Amplifier and an AGC Circuit
` The AM Stage has an Excellent AGC Characteristic and Low Distortion.

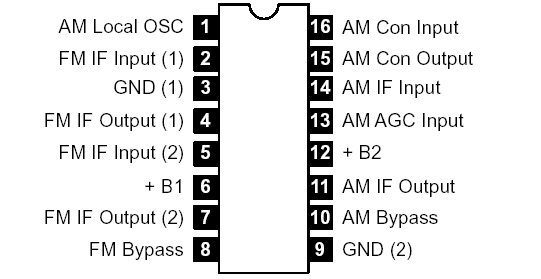

Pinout

Connection Diagram


Specifications

Supply Voltage, VCC............................................................. 9V
Package Dissipation (TA = +75), PD.......................... 350mW
Operating Temperature Range, Topr ...............20° to +75
Storage Temperature Range, Tstg................ 40° to +125


Description

The NTE1563 is a silicon monolithic integrated circuit in a 16Lead DIP type package designed for AM/FM radios and cassette tape recorders with an AM/FM radio. The NTE1563 contains an AM tuner and FMIF amplifiers.
