Product Details

Description

Features:

` LED MisTurning Protection Circuit at Transient Operation Voltage
` Provided with Forced Monaural and VCO Stop Circuits
` High Performance (Low Gain Loss, Low Distortion)

Application

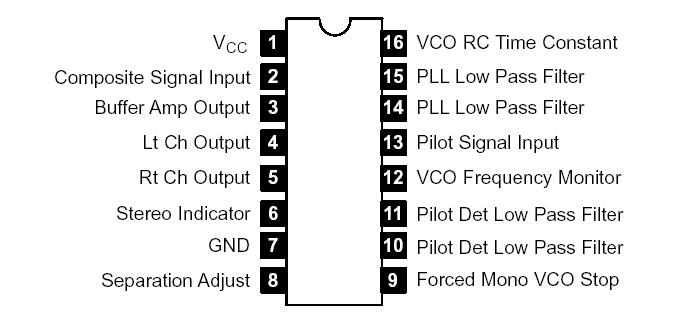

Connection Diagram

Specifications

Supply Voltage, V_{CC....................................................................} 12V
Circuit Voltage, V_{67...................................................................} 12V
Circuit Current, I_{6.....................................................................} 75mA
Power Dissipation, P_{D............................................................} 360mW
Operating Ambient Temperature Range,............ T_opr 20° to +75
Storage Temperature Range, T_{stg ...........................} 55° to +150

Description

The NTE1560 is an integrated circuit in a 16Lead DIP type package designed for low voltage radio and cassette tape recorders.
