Product Details

Description



Features:

VideoChroma Section
` Minimum number of external parts required
` Stabilized with respect to variation of temperature and supply voltage
` A few initial adjustments required
Deflection System
` Excellent temperature stability of horizontal oscillator
` Exact 50% duty cycle output due to the 2fH oscillator and flipflop circuit
` Excellent interrace
` Stable sync separator with V/H input terminals.

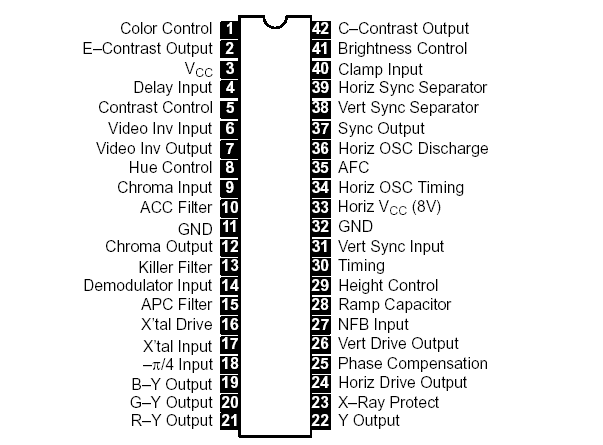

Pinout

Connection Diagram


Specifications

Supply Voltage, V3max................................................................................. 15V
Supply Current, I33max.............................................................................. 40mA
Input Signal Level, eIN ..............................................................................5VPP
Demodulator Min Load Resistance, RLD...................................................... 1.8kΩ
Horizontal Drive Peak Current, I24........................................................... 30mA
Horizontal Drive Operating Current, I24................................................... 15mA
Vertical Ouptut Current, I26max .................................................................5mA
Sync Separator Input Level, V38max/V39max ............................................3VPP
Pin7 Max Operating Current, I7.....................................................................5mA
Pin2 Max Operating Current, I2 ....................................................................4mA
Power Dissipation, PD .................................................................................2.2W
Derate Above 25............................................................................. 17.6mW/
Operating Temperature Range,........................................... Topr 20° to +65
Storage Temperature Range,............................................. Tstg 55° to +150





Description

The NTE1547 combines the videochroma subsystem and the deflection combination on a single monolithic integrated integrated circuit to provide a color television videochromadeflection system. This NTE1547 includes a video amplifier, color demodulator that is designed to provide color differential output, and improved syncseparator, horizontal oscillator with saw tooth wave type AFC, horizontal predriver in a 42Lead DIP type plastic package.
