NTE1538

Features: ` Multifunctional and Compact` Minimum Number of Parts Required` Horizontal, Vertical Oscillators are Stable Against Variations in Ambient Temperature and Supply Voltage due to Small WarmUp Drift.` Small Variation in Horizontal Oscillation Frequency` Good Linearity and Interlace because ...

product image

NTE1538 Picture
See larger image
SeekIC No. : 004436103 Detail

NTE1538: Features: ` Multifunctional and Compact` Minimum Number of Parts Required` Horizontal, Vertical Oscillators are Stable Against Variations in Ambient Temperature and Supply Voltage due to Small WarmU...

NTE1538 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE1538
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Multifunctional and Compact
` Minimum Number of Parts Required
` Horizontal, Vertical Oscillators are Stable Against Variations in Ambient Temperature and Supply Voltage due to Small WarmUp Drift.
` Small Variation in Horizontal Oscillation Frequency
` Good Linearity and Interlace because DC Bias at Vertical Output Stage is Subjected to Sampling Control within Retrace Time.
` Vertical Blanking Pulse Width can be Set Freely According to Peripheral Parts


Pinout

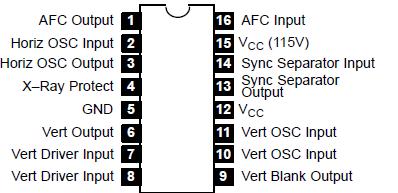

Connection Diagram


Specifications

Maximum Supply Voltage, V12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14V
Maximum Supply Current, I15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16mA
Allowable Power Dissipation (TA = +60°C), PDmax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 450mW
Operating Temperature Range, Topg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20° to +85°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 to +125°C


Description

The NTE1538 is a multifunctional integrated circuit in a 16Lead DIP type package containing various functions required for synchronization, deflection of color television sets. This device has been developed under the design concept that the basic characteristics should be made more complete and the television sets incorporating the NTE1538 should be streamlined by making the device compact and by minimizing the number of parts required.
