NTE1537

Features: ` SingleChip CMOS LSI for Static Display System` Capable of Direct Driving Green LED (Drive Capacity 15mA)` Capable of Selecting Frequency Display/Time Display` Use FM/AM Local Oscillation Signal of Varactor Diode, Variable Capacitor, or µ Tuning System to Digitally Display FM/AM R...

product image

NTE1537 Picture
See larger image
SeekIC No. : 004436102 Detail

NTE1537: Features: ` SingleChip CMOS LSI for Static Display System` Capable of Direct Driving Green LED (Drive Capacity 15mA)` Capable of Selecting Frequency Display/Time Display` Use FM/AM Local Oscillation...

NTE1537 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE1537
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` SingleChip CMOS LSI for Static Display System
` Capable of Direct Driving Green LED (Drive Capacity 15mA)
` Capable of Selecting Frequency Display/Time Display
` Use FM/AM Local Oscillation Signal of Varactor Diode, Variable Capacitor, or µ Tuning System to Digitally Display FM/AM Receiving Frequency
` Covers 4 AM Intermediate Frequencies: +262.5, +452.5, +455, +470kHz
` Covers 2 FM Intermediate Frequencies: +10.7, 10.7MHz
` Capable of FineAdjusting AM/FM Display Frequency Error Independently
` A variable Resistor can be used to Correct AM IF Error within ±2.8kHz
` A variable Resistor can be used to Correct FM IF Error within ±140kHz
` Two Selections of Display System (12Hour System with PM Sign which is Displayed During Setting Only, 24Hour System)
` Programmed on Long Months (31 Days)/Short Months (30 Days). Date in February is Programmed to Count up to the 29th
` Easy to Set Time by th Time Signal
` Stopwatch Capable of Counting/Displaying 1 Second to 12 Hours, 59 Minutes, 59 Seconds
` Inhibit Pin for Inhibiting Time Setting with Display Unlighted
` 4MHz Crystal for Reference Frequency




Application

`Car Radio Applications: FM/AM Receiving Frequency Display and Clock Display
`Home Radio Applications: FM/AM Receiving Frequency Display and Clock Display
`Car Clock Applications: HoursMinutes, MonthDate/Stopwatch Display


Pinout

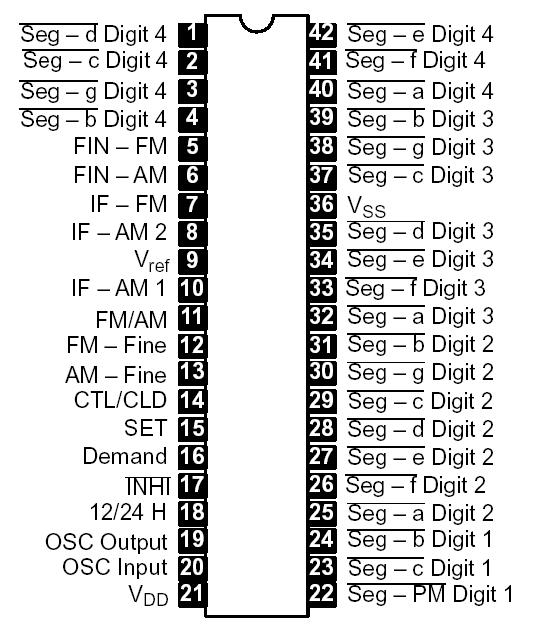

Connection Diagram


Specifications

Maximum Supply Voltage, VDDmax . . . . . . . . . . . . . . . . . . . . ..0.3 to 11V
(Cumulative applied time: 30min or less) . . . . . . . . . . . . . . .  .0.3 to 14V
Reference Voltage (Vref VDD), Vref . . . . . . . . . . . . . . . . . . . .0.3 to 10V
(Cumulative applied time: 30min or less) . . . . . . . . . . . . . .. . .0.3 to 13V
Input Voltage, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 to VDD+0.3V
Output Voltage (Output OFF), VO . . . . . . . . . . . . .. . . . .0.3 to VDD+0.3V
Allowable Power Dissipation (TA +75°C), PDmax . . . . . . . . . .  .800mW
Allowable Power Disipation of Segment Output, PD(seg)
Other than PM: IOL < 25mA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15mW
PM: IOL < 75mA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .45mW
Operating Temperature Range, Topr . . . . . . . . . . . . . . .30° to +75°C
Storage Temperature Range, Tstg . . . . . . . . . . . .  . . .40° to +125°C
