NTE1536

Features: ` Only one crystal is required for AM CB transceiver.` Two types of intermediate frequency can be selected: IF1 = 10.695MHZ IF2 = 9.785MHZ` Two types of lock monitor outputs: LM: When PLL is locked/unlocked, LM is high/low level. LM: When PLL is locked/unlocked, LM is low/high level.` Th...

product image

NTE1536 Picture
See larger image
SeekIC No. : 004436101 Detail

NTE1536: Features: ` Only one crystal is required for AM CB transceiver.` Two types of intermediate frequency can be selected: IF1 = 10.695MHZ IF2 = 9.785MHZ` Two types of lock monitor outputs: LM: When PLL ...

NTE1536 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE1536
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Only one crystal is required for AM CB transceiver.
` Two types of intermediate frequency can be selected:
     IF1 = 10.695MHZ
     IF2 = 9.785MHZ
` Two types of lock monitor outputs:
    LM: When PLL is locked/unlocked, LM is high/low level.
    LM: When PLL is locked/unlocked, LM is low/high level.
` The amplifier for low pass filter.
` The amplifier for programmable counter input.
` The detecting circuit for the misprogramming.
` BCD code input to the programmable counter.
` The buffer output for the reference oscillator.
` The output for the half frequency of the reference oscillator.
` The reference frequency oscillation amplifier (with feedback resistance).


Pinout

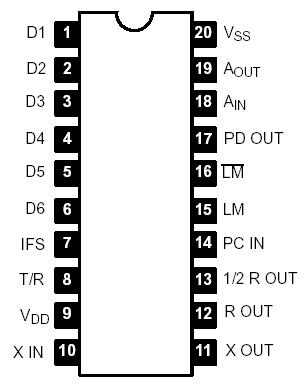

Connection Diagram


Specifications

Maximum Supply Voltage, VDDmax . . . . . . . . . . . . . . . . . . . . . .0.3 to +9.0V
Input Voltage, VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 to VDD+0.3V
Output Voltage, VOUT (Unload) . . . . . . . . . . . . . . . . . . . .  .0.3 to VDD+0.3V
Operating Temperature Range, Topg . . . . . . . . . . . . . . . . . ..30° to +70°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . .  .40° to +125°C


Description

The NTE1536 is a CMOS LSI device for the 27MHZ Citizen's Band Transceiver.
