Product Details

Description



Features:

` Phase Compensation Circuit
` High Gain, Low Noise
` Output ShortCircuit Protection
` Two Circuits Symmetrically Arranged in 9Lead plastic SIP Package


Pinout

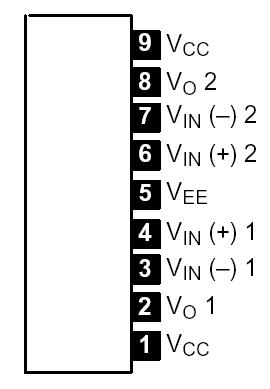

Connection Diagram


Specifications

Voltage, Supply Voltage, VCC, VEE  . . . . . . . . . . . . . . .. . . . . . . . . . . . . .±18V
Differential Input Voltage, VID  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±30V
CommonMode Input Voltage, VICM . . . . . . . . . . . . . . . . . . . . . . . . . .±15V
Power Dissipation, PD  . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . .500mW
Operating Ambient Temperature Range, Topr  . . . . . . . . . .20° to +75°C
Storage Temperature Range, Tstg  . . . . . . . . . . . . .  . . . .55° to +125°C


Description

The NTE1529 is a dual operational Amplifier with a phase compensation circuit builtin. It is suited for application to various electronic circuits such as active filters and audio preamplifiers.
