Product Details

Description



Features:

·10 LED Bar Display Driver
·Linear Scale Display
·Continuous 10 LED Display
·By Connecting in Series, Can Display More than 10 LEDs


Pinout

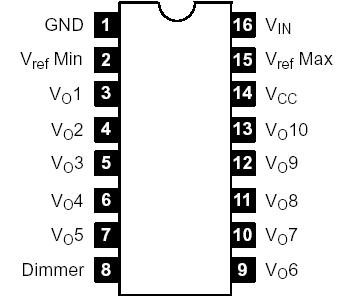

Connection Diagram


Specifications

Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20V
Power Dissipation, PD  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .750mW
Derate Above 25°C  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5mW/°C
Operating Temperature Range, Topr  . . . . . . .. . . . . .30° to +75°C
Storage Temperature Range, Tstg  . . . . . . . . . . . . .55° to +125°C
