Product Details

Description



Features:

· Useful for Both AC and DC Level Meter as VU Meter or Signal Meter
· Wide Supply Voltage Ramge: VCC = 4.4V to 12V
· DC Amplifier Included

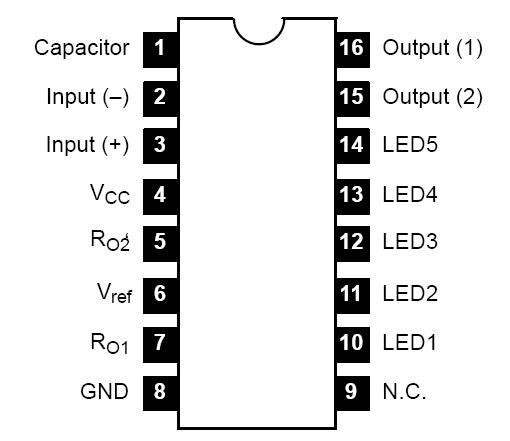

Pinout

Connection Diagram


Specifications

Maximum Supply Voltage (Pin4), VCCmax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3V to +14V
Input Voltage (Pin2, Pin3), VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3V to +14V
Current at Pin C (Pin1), IC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.1mA to 2mA
Output Voltage,
Pin16 (Note 2), VOUT(1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3V to +12V
Pin15, VOUT(2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3V to +12V
Pin10 to Pin14, VOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3V to 14V
Reference Current (Pin6), Iref . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0 to 10mA
Allowable Power Dissipation (TA = +55°C, Total), Pdmax . . . . . . . . . . . . . . . . . . . . . . . . . . 500mW
Operating Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10° to +60°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40° to +125°C
Note 2. When OUT1 is off and OUT2 is connected to GND (Pin8) through 12k.
Note 3. Notice inhibit to supply any voltage to input and output pin larger than VCC+0.3V (Especially
beware of power switch on). Pin D1 to D5 should be connected to VCC at no use of LED's.
