NTE1510

Features: ` BarType Display of Input Level using 5 LEDs` The Uppermost LED Brightness Varies Linearly With Respect to the Input Level Resulting in a HighResolution Display with No Radiation.` BuiltIn Reference Supply` By Changing the External Reference Values, the LED Brightness can be Adjusted` W...

product image

NTE1510 Picture
See larger image
SeekIC No. : 004436089 Detail

NTE1510: Features: ` BarType Display of Input Level using 5 LEDs` The Uppermost LED Brightness Varies Linearly With Respect to the Input Level Resulting in a HighResolution Display with No Radiation.` BuiltI...

NTE1510 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE1510
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` BarType Display of Input Level using 5 LEDs
` The Uppermost LED Brightness Varies Linearly With Respect to the Input Level Resulting in a
  HighResolution Display with No Radiation.
` BuiltIn Reference Supply
` By Changing the External Reference Values, the LED Brightness can be Adjusted
` Wide Range of Supply Voltages: VCC = 4V to 18V
` High Input Impedance: IIN = 100nA Typ


Application

· Signal Meters
· VU Meters
· Tuning Meters
· General Purpose Display Applications


Pinout

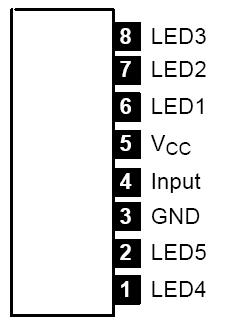

Connection Diagram


Specifications

Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18V
Input Voltage, VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6V
Output Breakdown Voltage, BVO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18V
Output Current (Per Pin), IO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15mA
Power Dissipation (Note 1), PdF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .550mW
Derate Above 25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . .5.5mW/°C
Operating Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20° to +75°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40° to +125°C
Note 1. With the NTE1510 soldered to a printed circuit board (copperclad area 4.5cm x 5.5cm,
thickness 35, board thickness 2.0mm).


Description

The NTE1510 is an integrated circuit in an 8Lead SIP type package designed for use in level meter applications. This device is capable of driving 5 LEDs to create a bartype display. In accordance with the input level, the uppermost LED brightness varies to form a linear indicator, making the NTE1510 ideal for use in signal meters and VU meters. A lowvoltage reference power supply is builtin, so that the only external components required are LEDs, resistors, and capacitors.
