NTE15039

Features: ` Designed for NTSC/PAL/MESECAM Systems` AdjustmentFree Chroma Section (Except REC Chroma Level)` Few External Components Required` LPF Usable for REC/PB` Multifunctional: 2fSC Generator for CCD Drive Function to Select APC Loop Input Signal Passed/Not Passed Through Comb Filter 3rd Lock...

product image

NTE15039 Picture
See larger image
SeekIC No. : 004436081 Detail

NTE15039: Features: ` Designed for NTSC/PAL/MESECAM Systems` AdjustmentFree Chroma Section (Except REC Chroma Level)` Few External Components Required` LPF Usable for REC/PB` Multifunctional: 2fSC Generator f...

NTE15039 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE15039
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Designed for NTSC/PAL/MESECAM Systems
` AdjustmentFree Chroma Section (Except REC Chroma Level)
` Few External Components Required
` LPF Usable for REC/PB
` Multifunctional:
    2fSC Generator for CCD Drive
    Function to Select APC Loop Input Signal Passed/Not Passed Through Comb Filter
    3rd Lock Protector of VXO


Pinout

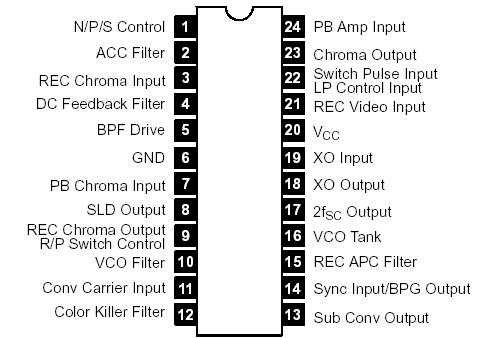

Connection Diagram


Specifications

Maximum Supply Voltage, VCCmax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7V
Allowable Power Dissipation (TA +65°C), PDmax  . . . . . . . . . . . . . . . .850mW
Operating Temperature Range, Topg  . . . . . . . . . . . . . . . . . . . .10° to +65°C
Storage Temperature Range, Tstg  . . . . . . . . . . . . . . . . . . . . .40° to +125°C


Description

The NTE15039 is a multifunctional IC in a 24Lead DIP type package that contains VHS VCT chroma signal processing circuitry. Since the package is small and a minimum number of external components are required, the NTE15039 occupies much less space on the PC board thus facilitating VCR design. The chroma section is made adjustmentfree (except REC chroma level) thus streamlining the manufacture of VCRs
