NTE15033

Features: ` Triple Diffused Darlington Transistor Chips Incorporated` Compact Plastic Package with Industry Standard Reliability` Output Voltage is PreFixed No External Adjustment is RequiredPinoutSpecificationsPeak Input Voltage, VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...

product image

NTE15033 Picture
See larger image
SeekIC No. : 004436077 Detail

NTE15033: Features: ` Triple Diffused Darlington Transistor Chips Incorporated` Compact Plastic Package with Industry Standard Reliability` Output Voltage is PreFixed No External Adjustment is RequiredPinout...

NTE15033 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE15033
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Triple Diffused Darlington Transistor Chips Incorporated
` Compact Plastic Package with Industry Standard Reliability
` Output Voltage is PreFixed No External Adjustment is Required


Pinout

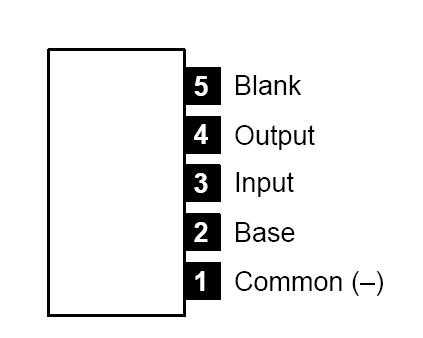

Connection Diagram


Specifications

Peak Input Voltage, VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .200V
Output Current, IO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1A
Power Dissipation (TC = +100°C), PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27W
Maximum Power Transistor Junction Temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +150°C
Operating Temperature Range (TC), Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20° to +125°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30° to +125°C
