Product Details

Description



Features:

Integrated Band Pass Filters using Active Filtering Technique and Thin Film Structure with High Capacitance
Variable Deemphasis Circuit with New Circuit Configuration
Minimum Number of External Components
Wide Operation Voltage Range: 4.7V to 16V


Pinout

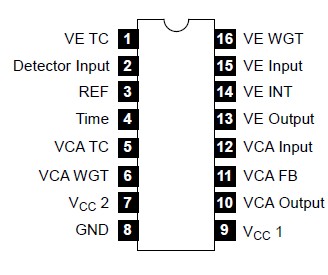

Connection Diagram


Specifications

Power Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17V
Allowable Power Dissipation, PD . . . . . . . . . . . . . . . . . ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 715mW
Operating Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20° to +75°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55° to +150°C


Description

The NTE15023 is an integrated circuit designed for the dbxTV noise reduction decode circuit for multichannel TV sound systems. This NTE15023 contains a voltage controlled amplifier, a variable deemphasis circuit with new configuration and RMS detectors with completely integrated active band pass filters, and offers the complete dbxTV noise reduction decoder only with a few external components.
