Product Details

Description



Features:

` Linear (NTE1501) and Logarithmic (NTE1500) Response
` 7LED Bar Graph Display Driver
` Brightness is Externally Adjustable
` High Output Current: 25mA Max
` Series Connection Capable for Driving more than 7Dot Displays


Pinout

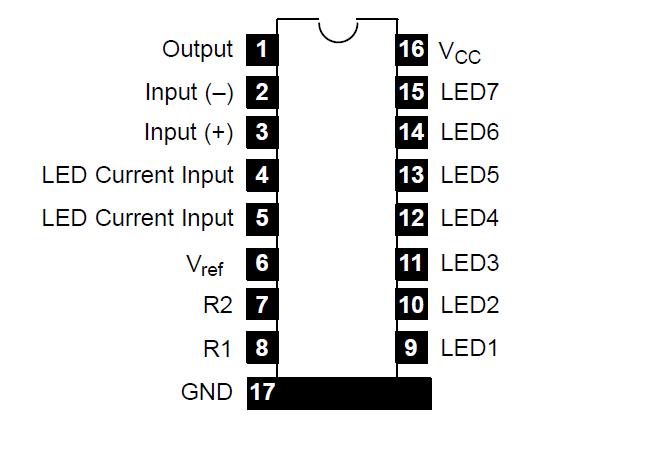

Connection Diagram


Specifications

Supply Voltage, VCC.............................. 18V
Circuit Voltage, VI  .............................. 7.5V
Input Voltage, VI  ...............................16V
Output Voltage, VO .............................. 16V
Supply Current, ICC  .............................25mA
Output Current, IO   .............................25mA
Power Dissipation, PD  ..........................1800mW
Operating Ambient Temperature Range, Topr  ..........30° to +75°C
Storage Temperature Range, Tstg ............... 55° to +150°C


Description

The NTE1500 and NTE1501 are integrated circuits designed for driving 7dot LED displays. The NTE1500 responds logarithmically to the input signal while the NTE1501 responds linearly. Because an adjustment pin for output current is provided, the brightness of the LED can be controlled.
