NTE15007

Features: • Low number of external parts• Excellent channel separation characteristics for stereo applications. Min. 46dB at 1kHz.• Selection of individual modes of MAIN/SAP/BOTH.• Direct driving mode for LED display.PinoutSpecificationsPower Supply Voltage, VCC . . . . . ....

product image

NTE15007 Picture
See larger image
SeekIC No. : 004436060 Detail

NTE15007: Features: • Low number of external parts• Excellent channel separation characteristics for stereo applications. Min. 46dB at 1kHz.• Selection of individual modes of MAIN/SAP/BOTH.&...

NTE15007 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE15007
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low number of external parts
• Excellent channel separation characteristics for stereo applications. Min. 46dB at 1kHz.
• Selection of individual modes of MAIN/SAP/BOTH.
• Direct driving mode for LED display.

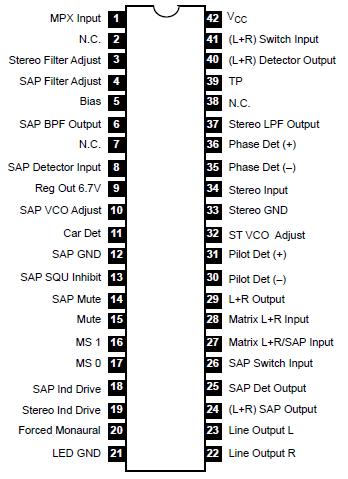

Pinout

Connection Diagram


Specifications

Power Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17V
Allowed Power Dissipation, PD . . . . . . . . . . . . . . . . . . . . . . . . . .1800mW
Individual Controlling Pins, V14 to 17, V20 . . . . . . . . . . . . . . . .VCC + 0.3V
LED Driving Current, ILED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25mA
Operating Temperature Range, Topr . . . . . . . . . . . . . . . . . .10° to +65°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . 55° to +150°C


Description

The NTE15007 is a bipolar integrated circuit is a 42Lead DIP type package designed for use in TV stereo multiplexing decoding, filters for stereo, and SAP (Separate Audio Program) demodulation applications.
