Features:

` High Input Sensitivity 3Stage IF Amplifier: 58.75MHz 100VRMS Type
` Gain Reduction with Excellent Stability: Reduction Range 65dB Typ
` Video Detector with Linear Characteristics
` Black and White Noise Inverting Circuits
` Balanced AFT Output
` Improved Fast AGC Response
` Delayed AGC Output for a FrontEnd FET Top FrontEnd
` Minimal External Components and Adjustments Required


Pinout

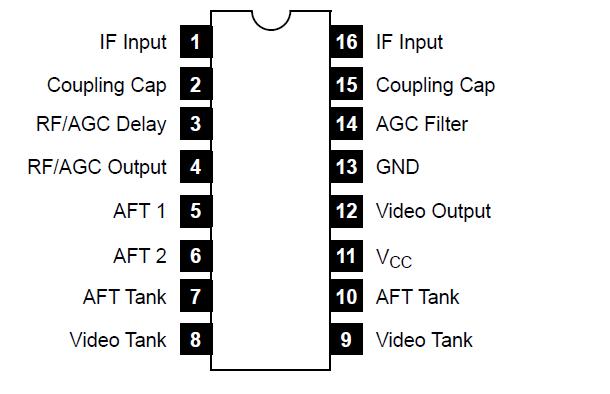

Connection Diagram


Specifications

Supply Voltage (Pin11), VCC .............................. 15V
Open Loop Voltage (Pin14), V14 ............................ 15V
Video DC Output Current (Pin12), I12 ......................... 6mA
Power Dissipation , PD   ................................1.4W
Derated Above 25°C ............................. 11.2mW/°C
Operating Temperature Range, Tstg ...................55° to +150°C
Storage Temperature Range, Topr ....................20° to +165°C


Description

The NTE15003 is a picture IF subsystem that provides 3stage IF amplifier, Video Detector, black and white noise inverting circuits and AFT detector for a TV receiver.

The NTE15003 also provides internal fast response AGC with dual time constants for the IF amplifier stages and delayed AGC for an external RF amplifier stage. It is designed for FET top frontend (reverse AGC).
