Features:

` High Output
` OnChip PumpUp Circuit and Low Power Dissipation
` Minimum Number of External Parts Required

Pinout

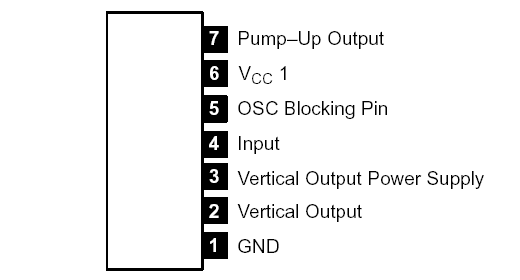

Connection Diagram

Specifications

Maximum Supply Voltage, V₆max ........................................30V
Maximum Supply Voltage, V₃max ........................................60V
Deflection Output Current, I₂max............................. ±1.3A_PO
Allowable Power Dissipation, P_Dmax................................. 4.5W
Operating Temperature Range, T_opg .................20° to +75
Storage Temperature Range, Ts_{tg ...................}40° to +125

Description

The NTE15002 is a monolithic linear IC in a 7Lead SIP type package designed for smallaperture color TV vertical deflection output and has such features as greatly reduced number of external parts and low power dissipation. The NTE15002 can be used in conjunction with the NTE1845 for video chroma deflection use and the NTE1538 for deflection use.
