Product Details

Description



Features:

`Low Distortion
`High SignaltoNoise Ratio
`High Limiting Sensitivity
`Large Muting Attenuation
`Provides Specific Signal for Direct Drive of a Signal Meter with Good Linearity
`Muting Level is Variable by Adjusting the External Resistor
`Hig Stability Against Abnormal Oscillation


Application

· FM IF Amplifier
· Quadrature Detector
· Audio Amplifier
· Muting Circuit
· AFC, Tuning Meter Driver
· AGC Control Voltage Generator
· Muting Control Voltage Generator
· Signal Meter Driver

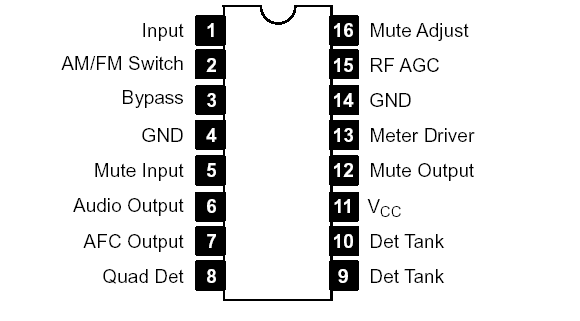

Pinout

Connection Diagram


Specifications

Supply Voltage, VCC ........................................................14V
Power Dissipation (TA = +60), PT............................ 590mW
Operating Temperature Range, Topr...............20° to +60
Storage Temperature Range, Tstg ................55° to +125
