Product Details

Description

Features:

· Low Buzz Characteristics for Audio Multiplex TV
·High Input Sensitivity
· Wide AGC Control Range
· Contains Differential Mode Input for use with SAW Filter

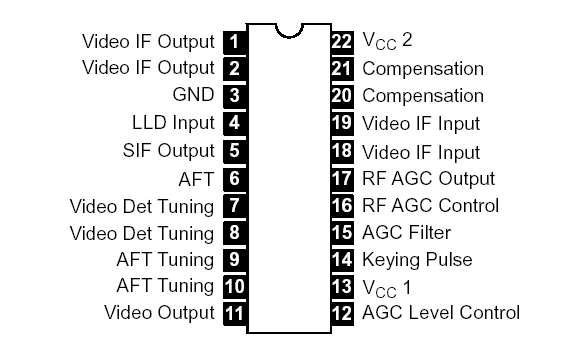

Pinout

Connection Diagram

Specifications

Supply Voltage (Pin13), V_{13max.........................................} 15V
Pin22 Current, I_{22max...................................................} 100mA
Pin14 Current, I_{14max....................................................}±3mA
Power Dissipation (T_A +65),............................. P_D900mW
Operating Temperature Range, T_{opr................} 15° to +65
Storage Temperature Range, T_{stg ..................}40° to +125

Description

The NTE1483 is a silicon monolithic integrated circuit in a 22Lead DIP type package designed for use in the PIF section in color TV receivers. As it contains a separate picture detector and sound IF detector, this device offers low buzz characteristics. The NTE1483 has all functions including picture IF amplifier (4^th), picture lowlevel detector, sound IF detector, AFC detector, IF AGC, RF AGC and picture amplifier.
