Product Details

Description



Features:

` Internal Output Power Transistor: 5A Load Current Capability
` Programmable Switch: Manual Operation Can be Obtained
` Pause Switch: Switching Pause (Switch ON), Plunger Does Not Operate Even if the Rotary Detective Signal Stops.
` Internal Load Dump Protector (Excessive Supply Voltage)
` Response Time and Driving Time are Variable with External Capacitors
` Input Sensitivity Voltage: 2V PP Min
` Operating Supply Voltage Range: VCC = 9V to 18V

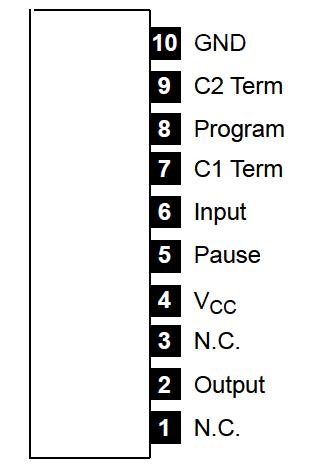

Pinout

Connection Diagram


Specifications

Supply Voltage, VCC ..............................18V
Load Current, IOUT ...............................5A
Power Dissipation (TC = +25°C), PD ....................12.5W
Peak Supply Voltage (1200 ms), VCCsurge...................40V
Operating Temperature Range, Topr ...............30° to +75°C
Storage Temperature Range, Tstg................55° to +150°C


Description

The NTE1478 is an integrated circuit in a 10Lead SIP type package that detects the stopping of a rotary signal and drives a plunger. It is designed for use in autoreverse and autoeject car stereo applications and can be used as a solenoid driver in many other control circuits.
