Product Details

Description

Features:

` Wide Operating Voltage Range
` Small Pop Noise by Means of Emitter Feedback
` Dual Amplifier InvolvedFew Peripheral Parts
` Small Output Noise Voltage

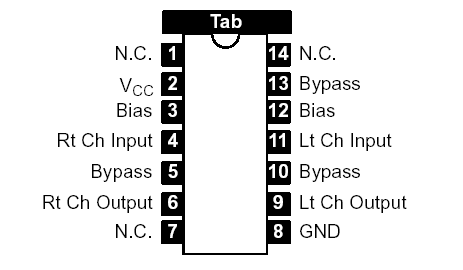

Pinout

Connection Diagram

Specifications

Maximum Supply Voltage, V_{CCmax.......................................................................} 22V
Maximum Supply Current (only Pin2: flowin; Pin7, 8: flowout), I_CP ...............0.5A
Allowable Power Dissipation, P_Dmax ................................................................1.05W
Operating Temperature Range, T_opr ..................................................20° to +70
Storage Temperature Range, T_stg ....................................................40° to +150

Description

The NTE1477 is a integrated circuit in a 14Lead DIP type package suitable for use as a headphone driving amplifier in the output amplifier of a tape deck or a tuner.
