NTE1476

Features: ` Recommended Supply Voltage: VCC = 7.5V, 9.0V` Output Power: POUT = 1.4W (Typ) at VCC = 7.5V, RL = 4Ω POUT = 2.0W (Typ) at VCC = 9.0V, RL = 4Ω THD = 10%` Minimum Operating Voltage: VCC = 5.0V` Low Quiescent Current` Excellent Ripple Rejection` Built in TurnOn Muting CircuitP...

product image

NTE1476 Picture
See larger image
SeekIC No. : 004436041 Detail

NTE1476: Features: ` Recommended Supply Voltage: VCC = 7.5V, 9.0V` Output Power: POUT = 1.4W (Typ) at VCC = 7.5V, RL = 4Ω POUT = 2.0W (Typ) at VCC = 9.0V, RL = 4Ω THD = 10%` Minimum Operating Vol...

NTE1476 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE1476
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Recommended Supply Voltage: VCC = 7.5V, 9.0V
` Output Power:
    POUT = 1.4W (Typ) at VCC = 7.5V, RL = 4Ω
    POUT = 2.0W (Typ) at VCC = 9.0V, RL = 4Ω THD = 10%
` Minimum Operating Voltage: VCC = 5.0V
` Low Quiescent Current
` Excellent Ripple Rejection
` Built in TurnOn Muting Circuit

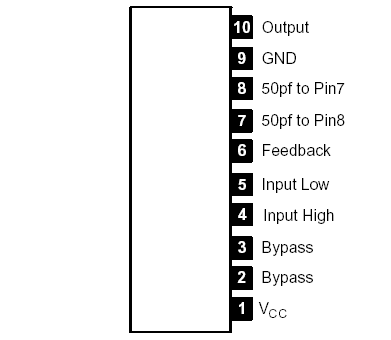

Pinout

Connection Diagram


Specifications

Supply Voltage, VCC .......................................................14V
Output Current (Peak), IO(peak)................................... 1.8A
Power Dissipation, PD 5.0W
Operating Temperature Range, Topr ...........20° to +75
Storage Temperature Range, Tstg .............55° to +150


Description

The NTE1476 is an audio power amplifier in a 10Lead SIP type package designed for use as a power amplifier in portable cassette tape recorder applications.
