Product Details

Description



Features:

` Builtin high speed programmable divider for direct PLL system
` PLL outoflock output available to inhibit transmittion.
` Instantaneous call capability of channel 9 and 19.
` Builtin detecting circuit of misprogram
` Builtin amplifier for crystal oscillator
` Builtin amplifier for active lowpass filter.
` BCD code channel selection. (Pulldown resistors included)

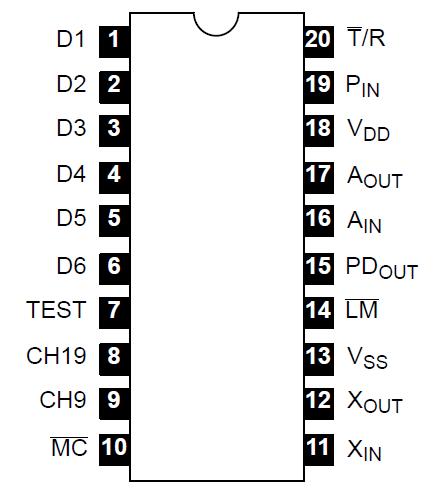

Pinout

Connection Diagram


Specifications

Maximum Supply Voltage, VDDmax  ..........................0.3 to +8.0V
Maximum Input Voltage, V INmax   ........................0.3 to VDD +0.3V
Maximum Output Voltage (MC , LM , AOUT, Output Off), VOUT(1)  ..........0.3 to +10.0V
Maximum Output Voltage (PDOUT, Output Off), VOUT(2)   ............0.3 to VDD + 0.3V
Maximum Output Current (MC , LM ), IOUT (1)   ...................... 0 to 15mA
Maximum Output Current (AOUT), IOUT (2)  ........................0 to 2.5mA
Allowable Power Dissipation, PDmax (TA = +70°C) ..................... 300mW
Operating Temperature Range, Topg ........................30° to +70°C
Storage Temperature Range, Tstg .........................40° to +125°C
