Product Details

Description



Features:

` High Limiting Sensitivity: 18V Typ.
` Low Distortion: 0.05% Typ Determined by the Linearity of Phase Characteristics in Phase Shifting Circuit
` High Demodulation Output: 330mVrms Typ
` High S/N Ratio: 78.5dB Typ
` Muting at Detuning with Little Shock Noise
` Single Meter Drive Output Proportional with the Input Signal Level dB
` Detuning Muting Band having Good Symmetrics
` Tuning Meter Driving Output having Wide Swing Width
` Delay AGC Drive Output for Front End
` Constant Voltage Circuit is BuiltIn: Operating Voltage Range = 9V to 14V
` Muting Characteristics Between Adjacent Stations are Distinguished


Pinout

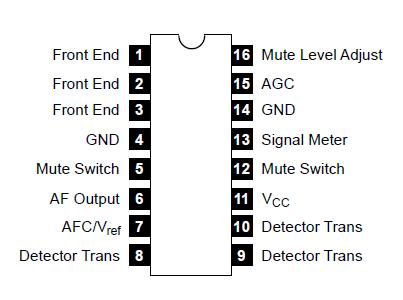

Connection Diagram


Specifications

Maximum Supply Voltage (Pin11), VCCmax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16V
Maximum Input Voltage (Pin12), VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±1VPP
Maximum Supply Current (Pin11), ICC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40mA
Maximum FlowIn Current
       Pin15, I15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1mA
       Pin16, I16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1mA
Maximum FlowOut Current
      Pin10, I10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2mA
      Pin12, I12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2mA
      Pin13, I13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2mA
      Pin15, I15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2mA
Allowable Power Dissipation, PDmax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 650mW
Operating Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20° to +70°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40° to +125°C
