NTE1414

Features: ` Complete TwoOperation/24 Hour Timer` Alternate Current of 50Hz/60Hz Entered` AM/PM or 24 Hour Display` Hours can be Set in FORWARD or REVERSE Mode` Sleep Timer Operation for not more than 1 Hour, 59 Minutes once it is Set` Stopwatch Timing up to 1 Hour, 59 Minutes, and 59 Seconds` Capa...

product image

NTE1414 Picture
See larger image
SeekIC No. : 004436023 Detail

NTE1414: Features: ` Complete TwoOperation/24 Hour Timer` Alternate Current of 50Hz/60Hz Entered` AM/PM or 24 Hour Display` Hours can be Set in FORWARD or REVERSE Mode` Sleep Timer Operation for not more tha...

NTE1414 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE1414
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Complete TwoOperation/24 Hour Timer
` Alternate Current of 50Hz/60Hz Entered
` AM/PM or 24 Hour Display
` Hours can be Set in FORWARD or REVERSE Mode
` Sleep Timer Operation for not more than 1 Hour, 59 Minutes once it is Set
` Stopwatch Timing up to 1 Hour, 59 Minutes, and 59 Seconds
` Capable of Directly Driving a Fluorescent Lamp Tube
` Power Failure Indicator


Pinout

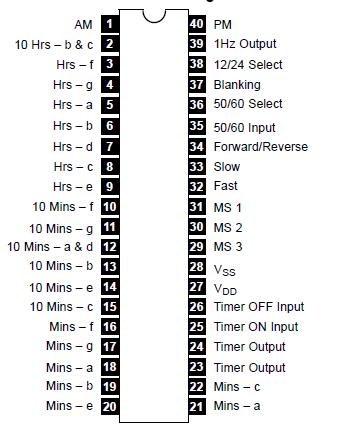

Connection Diagram


Specifications

Supply Voltage, VDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 to +0.3V
Input Voltage, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 to +0.3V
Output Voltage, VO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 to +0.3V
Operating Ambient Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20° to +70°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40° to +125°C


Description

The NTE1414 is an LSI integrated circuit in a 40Lead DIP type package designed for AC INPUT clock timers capable of randomly setting "ON hour" and "OFF hour" by a unit of a minute. This device can also work as a stopwatch timing up to 1 hour, 59 minutes and 59 seconds, and as a sleep timer operating for not more than 1 hour and 59 minutes once it is set.

A current hour, "ON hour", and "OFF hour" of NTE1414 can be set easily in one of the following three modes: FAST mode, in which the data of figures of minutes are sent fast at 50Hz or 60Hz; SLOW mode, in which they are sent slow at 2Hz; and REVERSE, mode in which they are sent reversely.
