Product Details

Description



Features:

· Available for Two Types of Tuners:
    NPN Tuner (NTE1413)
    FET Tuner (NTE1545)
· High Gain, Wide Band IF Amplifier: 50dB Typ. at 58MHz
· Gain Reduction with Excellent Stability: 55dB Typ. at 58MHz
· Excellent DG/DP Characteristics:
    DG = 7% Typ.
    DP = 3.5 deg Typ.
· Excellent S/N Characteristics due to Delayed 3 Stages AGC Action
· Negative video output signal
· Fast AGC Action due to Noise Inverter and Peak AGC
· Switch Off the Video Part with VTR SW
· Dual Differential AFT Output

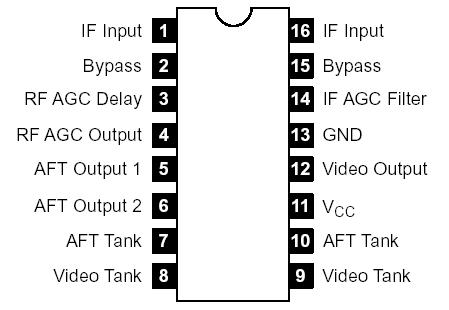

Pinout

Connection Diagram


Specifications

Supply Voltage, VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . .15V
Open Loop Voltage, V4  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15V
Video DC Output Current, I12 . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . 6mA
Power Dissipation, PD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.4W
Derate Above 25°C  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11.2mW/°C
Operating Temperature Range, Topr . . . . . . . . . . . . . . . . . 20° to +65°C
Storage Temperature Range, Tstg  . . . . . . . . . . . . .  . . . .55° to +150°C


Description

The NTE1413 and NTE1545 are integrated circuits in a 16Lead DIP type package designed for use as video IF amplifiers for color and monochrome television receivers
